UHF RFID Reader

UHF RFID Reader by RDL Technologies is designed keeping in mind about the Industrial Environment. UHF RFID Reader is designed to monitor and identify the tracks and pallets by integrating with PLC and SCADA

Specification:

DC Supply Voltage: 5-30V Frequency: 840-960MHZ Read range: Read: 50-200cm. Write Range: 5-10cm   (Read range subject to environment and tag Manufacturer) Output power: 18-26 dBm Output power accuracy: +/- 1dB Output power flatness: +/- 0.2dB Receive sensitivity: < -70dBm Protocol: EPC global UHF Class 1 Gen 2 / ISO 18000-6C Operating time: <100mS Store tag peak speed: > 50pcs/sec Tags RSSI: Support Communication interface: RS232 /  Rs485 Communication baud rate: 115200 bps  (default and recommend) 38400bps Operation temp.: - 20 °C - + 70 °C Storage temp.: - 20 °C - + 85 °C Working humidity: < 95% ( + 25 °C) External Dimension(mm): 84x59x34 Enclosure: IP65

For more info:CLICK HERE

DATASHEET    : CLICK HERE

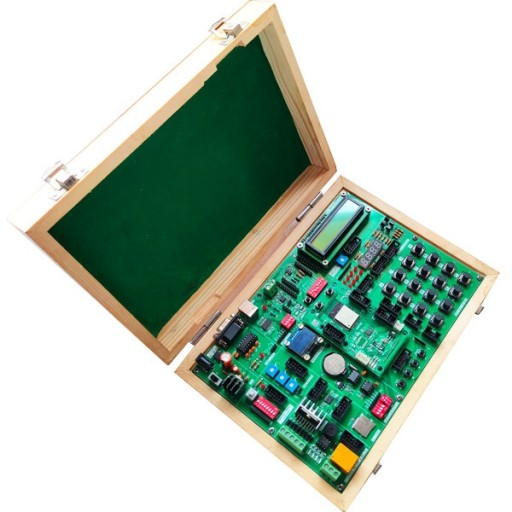

                    PIC Development Board-Trainer Kit

Start Your Embedded System Design JourneyToday..!

PIC essential development features a plug and play design that makes it easy for connections and helps Students, hobbyists, enthusiasts, and professionals to focus more on Program / application development. PIC Development Board Trainer kit equipped with on board IO’s, communication interfaces & peripherals. It is really easy to design, experiment with, and test circuits without soldering. It’sused in many educational  institutions and R&D LAB across the world.

Features:

• Plug & Play Interface Connectivity.

• Professional EMI/RFI Complaint PCB Layout Design

• Modular Block design makes Easy access & quick Prototyping

• FRC connectivity features minimize the connection Error.

• High Quality Grade PCB with wooden Enclosure.

• 8 interfacing LED’s.

• 1 * 4 Menu keypad.

• 4* 4 Matrix Keypad.

• RS232, RS485, USB communication port.

• 7 Segment Multiplexed Display.

• 16*2 LCD & OLED Display

• ADC & DAC Card.

• 8 bit 4 port IO.

• On Board WiFi / Bluetooth Connectivity

• 3.3 to 5V Level Converter.

• Power Supply 3.3V and 5V

• SD CARD Interface.

• RTC & EEPROM Interface.

• DC Motor/ Stepper Motor Driver.

• Relay, Buzzer.

• 1xTemperature Sensor.

• 3x Analog Test POT.

Scope of Learning Experiments:

• LED blinking.

• 8 bit LED Left shift, Right shift and counting operation.

• Keypad  Interrupt Interface

• 16*2 LCD interface.

• Matrix Keypad Interface.

• ADC& DAC interface.

• Traffic Light Signal Interface.

• 8 bit DIP switch interface.

• 7 Segment interface.

• L298 Driver for DC Motor and Stepper motor interface.

• Elevator Interface.

• Buzzer, Relay interface.

• RS485, RS232 serial communication

•  PWM Interface

• UART Operation

•  RTC DS1307I2C protocol interface.

• AT24C04 EEPROM I2C protocol interface.

• RF/WiFiCommunication.

•  SPI protocol interface

• Temperature Sensor Interface.

DATASHEET: CLICK HERE

MORE INFO:CLICK HERE



             ATmega328 Development Board- Trainer Kit

ATMGEA328 IoT Trainer Kit essential development features a plug and plays design that makes it easy for connections and helps Students, hobbyists, enthusiasts, and professionals to focus more on Program/application development. ATMGEA328 IoT Trainer Kit equipped with onboard IO’s, communication interfaces & peripherals. It is really easy to design, experiment with, and test circuits without soldering. It’s used in many educational institutions and R&D LAB across the world.

Atmega 328 is one of the most commonly used Micro controllers with open source platform amongst many hobbyist and industrial communities. The simplicity and the low power of Atmega 328 helps design many prototype boards which could be used in numerous applications.The Atmega 328 includes 6 analog inputs, 14 digital I/O pins (6 amongst these could be used as PWM outputs), a crystal oscillator with 16MHz frequency.

Features:

• Plug & Play Interface Connectivity.

• Professional EMI/RFI Complaint PCB Layout Design

• Modular Block design makes Easy access & quick Prototyping

• FRC connectivity features minimize the connection Error.

• High-Quality Grade PCB with wooden Enclosure.

• 8 interfacing LED’s.

• 1 * 4 Menu keypad.

• 4* 4 Matrix Keypad.

• RS232, RS485, USB communication port.

• 7 Segment Multiplexed Display.

• 16*2 LCD & OLED Display

• ADC & DAC Card.

• 8 bit 4 port IO.

• On Board WiFi / Bluetooth Connectivity

• 3.3 to 5V Level Converter.

• Power Supply 3.3V and 5V

• SD CARD Interface.

• RTC & EEPROM Interface.

• DC Motor/ Stepper Motor Driver.

• Relay, Buzzer.

• 1xTemperature Sensor.

• 3x Analog Test POT.

Scope of Learning Experiments:

• LED blinking.

• 8 bit LED Left shift, Right shift and counting operation.

• Keypad  Interrupt Interface

• 16*2 LCD interface.

• Matrix Keypad Interface.

• ADC& DAC interface.

• Traffic Light Signal Interface.

• 8 bit DIP switch interface.

• 7 Segment interface.

• L298 Driver for DC Motor and Stepper motor interface.

• Elevator Interface.

• Buzzer, Relay interface.

• RS485, RS232 serial communication

•  PWM Interface

• UART Operation

•  RTC DS1307I2C protocol interface.

• AT24C04 EEPROM I2C protocol interface.

• RF/WiFiCommunication.

•  SPI protocol interface

• Temperature Sensor Interface.

For more info:Click Here



Remote Condition Monitoring System

Condition Monitoring - Increased Reliability

 Remote condition monitoring solution ideal for  motors that play a  critical role in production and sensitive applications.Operators can use Condition Monitoring System for remotely monitor the health, performance, and efficiency of the motors, as well as detect early signs of potential problems and schedule maintenance so that a fixable problem does not worsen and cause unplanned downtime.

What is condition monitoring?

 Machines and systems are carefully observed for changes that could indicate upcoming failure.The sensor data is analyzed to determine that could affect the functioning , like Temperature ,Vibration , Speed , Energy consumption ,suction and discharge pressure  has changed while it is in operation



Advantages of Condition Monitoring



• Proactive alerts of potential problems reduces down time
• Minimize Unplanned Downtime and reduce the maintenance costs & time.
• Condition-based maintenance leads to increased reliability, improved uptime
• Early detection of potential problems leads to increased uptime Maintenance activities , improved Safety and longer motor lifespan.
• Remote & real-time monitoring system helps in achieving high operation efficiency

DATASHEET:CLICK HERE

For more info: CLICK HERE



ESP32 IoT Development Trainer Kit

Start Your IoT Journey Today..!

ESP32 IoT Development Trainer Kit essential development features a plug-and-play design that makes it easy for connections and helps Students, hobbyists, enthusiasts, and professionals to focus more on Program/application development. ESP32 IoT Trainer Kit equipped with onboard IO’s, communication interfaces & peripherals. It is really easy to design, experiment with, and test circuits without soldering. It’s used in many educational institutions and R&D LAB across the world.

Features:

Board Features On Board Programming. Plug & Play Interface Connectivity. Professional EMI/RFI Complaint PCB Layout Design Modular Block design makes Easy access & quick Prototyping  FRC connectivity features minimize the connection Error. High Quality Grade PCB with wooden Enclosure.  8 interfacing LED’s. 1 * 4 Menu keypad. 4* 4 Matrix Keypad. RS232, RS485, USB communication port. 7 Segment Multiplexed Display.

16*2 LCD & OLED Display ADC & DAC Card. 8 bit 4 port IO. On Board WiFi/Bluetooth Connectivity 3.3 to 5V Level Converter. Power Supply 3.3V and 5V SD CARD Interface. RTC & EEPROM Interface. DC Motor/ Stepper Motor Driver. Relay, Buzzer. 1xTemperature Sensor. 3x Analog Test POT.

Scope of Learning Experiments:

LED blinking. 8 bit LED Left shift, Right shift and counting operation. Keypad  Interrupt Interface 16*2 LCD interface. Matrix Keypad Interface. ADC& DAC interface. Traffic Light Signal Interface. 8 bit DIP switch interface. 7 Segment interface. For more info: CLICK HERE

Elevator Interface. Buzzer, Relay interface. L298 Driver for DC Motor and Stepper motor interface. RS485, RS232 serial communication. UART Operation RTC DS1307I2C protocol interface. AT24C04 EEPROM I2C protocol interface. RF/WiFiCommunication. Temperature Sensor Interface.
