RS-485 Data Logger Sheild With RTC Compatible for Arduino

Quick Overview
The data logger is a reliable, well-rounded and versatile design. It is easily expandable with wireless interface like Xbee and Bluetooth. Can be used for saving data to files on any FAT16 or FAT32 formatted SD card, to be read by any plotting, spreadsheet or analysis program. The included Real Time Clock timestamps all your data with the current time, so that you know precisely what happened when.



RS485 serial bus interface standard transmiss signal through difference balance, have very strong resistance ability to common mode interference, allows one transmitter to drive multiple load equipments on a pair of twisted pair. In theory, the communication distance is 1200 meters, the rate speed can be as fast as 20 Mbps, and it can keep normal work in strong noise environment.

Features

• SD card interface works with FAT16 or FAT32 formatted cards. 3.3v level shifter circuitry prevents damage to your SD card.
• Real time clock (RTC) keeps the time going even when the Arduino is unplugged. The battery backup lasts for years.
• 3.3V voltage level converter for memory card,  reliably runs SD cards that require a lot of power to run.
• Optional Bluetooth and Xbee interface.
• Low Quiescent Current: 300µA
• -7V to +12V Common-Mode Input Voltage Range
• Three-State Outputs
• 30ns Propagation Delays, 5ns Skew
• Operate from a Single 5V Supply
• Allows up to 32 Transceivers on the Bus
• Data rate: 2.5 Mbps
• Current-Limiting and Thermal Shutdown for Driver Overload Protection
• The transmitter outputs and receiver inputs are protected to ±15kV Air ESD.

For Sample Codes , Schematics & Tutorial CLICK HERE

RS-485 Sheild

Quick Overview
The data logger is a reliable, well-rounded and versatile design. It is easily expandable with wireless interface like Xbee and Bluetooth. RS485 serial bus interface standard transmiss signal through difference balance, have very strong resistance ability to common mode interference, allows one transmitter to drive multiple load equipments on a pair of twisted pair. In theory, the communication distance is 1200 meters, the rate speed can be as fast as 20 Mbps, and it can keep normal work in strong noise environment.

Features

• Optional RTC interface.
• Optional Bluetooth and Xbee interface.
• Low Quiescent Current: 300µA

For Sample Codes , Schematics & Tutorials CLICK HERE

Fusion Board Compatible for Arduino and Raspberry Pi

Quick Overview
Arduino Raspberry Pi Fusion Board is a  prototype expansion board, to build a prototype circuit while both Arduino and Raspberry Pi are used together.

Features

• Has a power indicator LED.
• Has a reset switch.
• Both Arduino and Raspberry could be connected together through this board.
• Has a separate Voltage level converter with the following features.
•                Minimum Voltage: 3.3V and Maximum Voltage: 5V
•                Bi-directional Logic Level conversion is possible.
•                BreadBoard friendly.

For Sample code,Schematics  & Tutorial CLICK HERE

LCD KEYPAD Shield-Serial

Quick Overview

One of the basic interfacing requirements for the hobbyists or electronics enthusiasts is I/P (keypad) and O/P (LCD display)  for proyotype applications. This shield uses minimum number I/O’s that is 2 bits(D0 and D1) for LCD data . 5 input key switches (Navigation keys), when it's activated serial data will be sent to pin  D0 by internal 2 line LCD controller. Each key has been pulled up to a different voltage level, so a different voltage will be generated every time a user selects a key. This voltage could be read by the analog pin of internal 2 line LCD controller on the board. Hence saves the no of I/O pins.  The backlight of the LCD could be controlled by setting PWM (Pin D10) by adding a few lines of code.

Features

• 16X2 Blue color back light LCD.
• LCD and Navigational keys can be interfaced by just 2 lines(D0 and D1 ).
• Optional PWM based Back light control.
• Stackable on UNO shield.

For More Sample Codes & Tutorial CLICK HERE

DIY UNO Play Breadboard -ATMEGA328P

Quick Overview
Atmega 328 is one of the most commonly used Micro controllers with open source platform amongst many hobbyist and industrial communities. The simplicity and the low power of Atmega 328 helps design many prototype boards which could be used in numerous applications.



We introduced UNO Play Breadboard -ATMEGA328P board.The  UNO Play Breadboard -ATMEGA328P  also includes 6 analog inputs, 14 digital I/O pins (6 amongst these could be used as PWM outputs), a crystal oscillator with 16MHz frequency, a 5 pin female connector to connect FT232 plugin.This board does not have an inbuilt USB to directly load the program from the computer. As we all know, once the program has been dumped into the board, the part of the USB connectors become useless. So to load the program we have given common interface through FT232 breakthrough board where we can connect to a computer and load the codes into the UNO Play Breadboard -ATMEGA328P.

Features

• Atmega328p- controller
• 14 digital I/O port RX, TX, D2~D13.
• 8 analog input port A0~A7.
• One pair of TTL RX/TX.
• 6 PWM terminal.
• Power indicating LED.
• Programmable with Arduino open source.

For More Details and Tutorials CLICK HERE

Ethernet Web Shield- Smart Internet Application Development Kit

Quick Overview
Ethernet Web shield is a smart communication shield for controlling and monitoring embedded application via internet.Internet is the media and economic way for communication between anywhere from to geographical location.This shield is compatible with Arduino open source and make easy way for customized application development.This shield has got four relay 10AMP.The board by ULN2003 IC. The board works on 5V.

Features

• IEEE 802.3 compatible.
• Supports Full and Half-Duplex modes.
• Integrated MAC and 10Base-T PHY
• SPI Interface with Clock Speeds Up to 20 MHz.
• With this Ethernet Shield, your Arduino board can be connected to internet.
• Stackable by accepting prototype shield or any other boards with Arduino compatible interface.
• LED indication for relay & power supply.
• Design based on highly proven IC ULN2803 as driver.

For More Details & Tutorial CLICK HERE

DIY UNO Play Breadboard -ATMEGA328P with FT232 Breakout Board

Quick Overview
Atmega 328 is one of the most commonly used Micro controllers with open source platform amongst many hobbyist and industrial communities. The simplicity and the low power of Atmega 328 helps design many prototype boards which could be used in numerous applications.



 We introduced UNO Play Breadboard -ATMEGA328P board.The  UNO Play Breadboard -ATMEGA328P  also includes 6 analog inputs, 14 digital I/O pins (6 amongst these could be used as PWM outputs), a crystal oscillator with 16MHz frequency, a 5 pin female connector to connect FT232 plugin.This board does not have an inbuilt USB to directly load the program from the computer. As we all know, once the program has been dumped into the board, the part of the USB connectors become useless. So to load the program we have given common interface through FT232 breakthrough board where we can connect to a computer and load the codes into theUNO Play Breadboard -ATMEGA328P.

Features

• Atmega328p- controller
• 14 digital I/O port RX, TX, D2~D13.
• 8 analog input port A0~A7.
• One pair of TTL RX/TX.
• 6 PWM terminal.
• Power indicating LED.
• Simple and convenient design for the hobbyist and developers.
• High speed bridge converting USB to Serial, serial to USB.
• Programmable with Arduino open source.

For More Details CLICK HERE

Ethernet Module

Quick Overview
This Ethernet Breakout-Module is simplest way to add LAN connectivity to your microcontroller based products and projects.Use this module to enable Ethernet interface for your product. It works with any microcontroller operating at 3.3V or 5V.This module works at 3.3V and is compatible with 5V interface lines.

Features

• Brand new and high quality.
• chip board ENC28J60-I/SO.
• the board 25MHZ crystal.
• the network interface board HR911105A.
• 3.3 V power supply pin.
• Size: 6cm x 3.2cm - 2.4inch x 1.28inch.

Codes

#include "etherShield.h"

#include "ETHER_28J60.h"

int outputPin = 6;

static uint8_t mac[6] = {0x54, 0x55, 0x58, 0x10, 0x00, 0x24}; // this just needs to be unique for

your network,

 static uint8_t ip[4] = {192, 168, 1, 15}; // IP address for the webserver

static uint16_t port = 80; // Use port 80 - the standard for HTTP

ETHER_28J60 e;

void setup()

{

 e.setup(mac, ip, port);

 pinMode(outputPin, OUTPUT);

}

void loop()

{

 char* params;

 if (params = e.serviceRequest())

 {

 e.print("<h1><a href='/?led=off'>Arduino Web Remote</a></h1>");

 if (strcmp(params, "?led=on") == 0)

 {

 digitalWrite(outputPin, HIGH);

 e.print("<a href='?led=off'><button style='border: 1px solid #ff0000; border-left: 10px solid

#ff0000' type='button'>LED IS ON</button></a>");

 }

 else if (strcmp(params, "?led=off") == 0)

 {

 digitalWrite(outputPin, LOW);

 e.print("<a href='?led=on'><button style='border: 1px solid #000; border-left: 10px solid

#000' type='button'>LED IS OFF</button></a>");

 }

 e.respond();

 }

}


 For Documents & Tutorial CLICK HERE

Arduino Uno Case

Quick Overview
This product is protective case of UNO R3,fastened by eight screws. It is made by high grade acryl, which provides excellent protection, with fashion appearance. This is unique design for UNO R3 with pin lekage, which provides easy connection to other components.

Features

• Compatible with Arduino Uno.
• Laser cut acrylic top.
• Compatible with all Arduino shields.
• Access to all Arduino Uno connectors.
• Screw-mounting points for securing your Arduino.

For More Details Please CLICK HERE

Arduino Mega Case

Quick Overview
This product is protective case of  Mega2560 , fastened by eight screws. It is made by high grade acryl, which provides excellent protection, with fashion appearance. This is unique design for Mega2560 with pin lekage, which provides easy connection to other components.

Features

• Compatible with Arduino Mega.
• Laser cut acrylic top.
• Compatible with all Arduino shields.
• Access to all Arduino Mega connectors.
• Screw-mounting points for securing your Arduino

For More Details Please CLICK HERE

Joystick Shield with XBEE

Quick Overview
The Joystick Shield easily stacks on top of your ATmega 328 R3 and turns it into a simple robotic and gaming controller. Six momentary push buttons (4+2), a two-axis thumb joystick and optional remote transmission adapter for Xbee and Bluetooth allows your ATmega 328 R3 to control from remote location.

Features :

• Jumbo yellow 4 keypad.
• Joystick.
• Two selection switch.
• With xbee.
• Compatible with UNO R3 and Mega 2560.

For More Details Please CLICK HERE

FT232 BreakOut Board

Quick Overview

It’s a common high speed IC used to convert USB to serial converter. It’s quite commonly used to connect a microcontroller TTL data to any USB interface host to establish a bridge for communications between USB to serial devices. This particular breakthrough board can be used to program RDL UNO ATMEGA 328 and use directly in to your own circuits. Also this breakthrough board can also act as a bridge between Xbee and its Xbee utility software to configure various Xbee’s.

Features :

• Simple and convenient design for the hobbyist and developers.
• High speed bridge converting USB to Serial, serial to USB

For More Details Please CLICK HERE

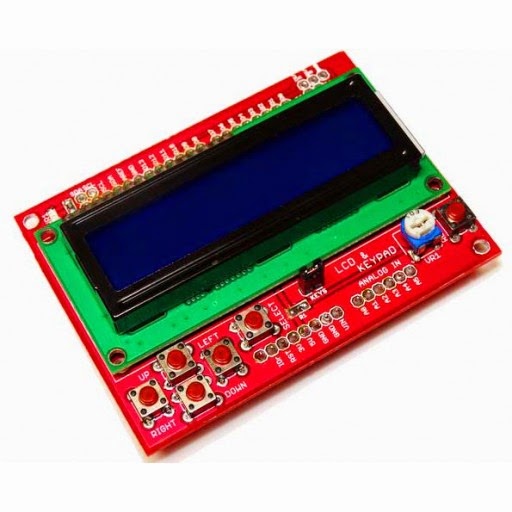

LCD KEYPAD Shield

Quick Overview
One of the basic interfacing requirements for the hobbyists or electronics enthusiasts is I/P (keypad) and O/P (LCD display)  for proyotype applications. This shield uses minimum number I/O’s that is 4 bits for LCD data and 2 control signal lines for the same. A single analog pin (Pin A0) is multiplexed to read 5 input key switches (Navigation keys). Each key has been pulled up to a different voltage level, so a different voltage will be generated every time a user selects a key. This voltage could be read by the analog pin A0 on the board. Hence saves the no of I/O pins.  The backlight of the LCD could be controlled by setting PWM (Pin D10) by adding a few lines of code

Features :

• 16X2 Blue color back light LCD.
• A single Analog pin is multiplexed to read 5 input Keys.
• Optional PWM based Back light control.
• Stackable on UNO shield

For More Details Please CLICK HERE

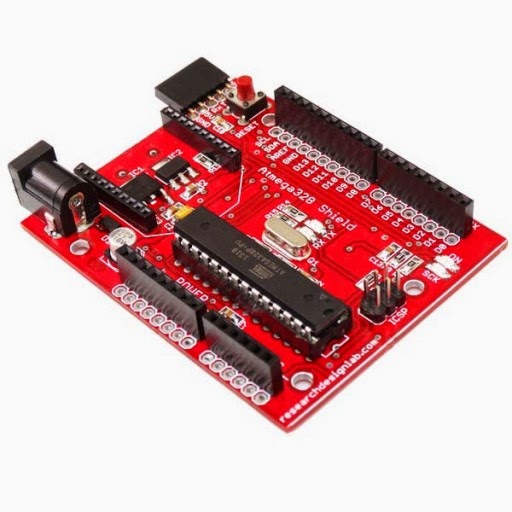

UNO ATMEGA328 Development Board - Programmed with Arduino

Quick Overview

Atmega 328 is one of the most commonly used Micro controllers with open source platform amongst many hobbyist and industrial communities. The simplicity and the low power of Atmega 328 helps design many prototype boards which could be used in numerous applications.We introduced RDL UNO Atmega 328 development board having common UNO interface to the available shields. The board also has inbuilt Xbee footprint with memory card interface in a single compact board without the need of doing external connections and hence as a whole the final product becomes cost effective. The RDL UNO Atmega 328 also includes 6 analog inputs, 14 digital I/O pins (6 amongst these could be used as PWM outputs), a crystal oscillator with 16MHz frequency, a 5 pin female connector to connect FT232 plugin, a power jack, a reset button and an ICSP header. This board does not have an inbuilt USB to directly load the program from the computer. As we all know, once the program has been dumped into the board, the part of the USB connectors become useless. So to load the program we have given common interface through FT232 breakthrough board where we can connect to a computer and load the codes into the RDL UNO Atmega 328. Since the USB interface has been removed, we have provided Xbee foot print and Micro SD card slot which is commonly used by many electronics enthusiasts. Once the program has been dumped into the RDL UNO Atmega 328 we can remove the FT232 plugin and could be used independently for other purposes.This board is fully compatible with Arduino like open source software.

RDL- UNO ATMEGA328 Development Board - Programmed with Arduino

Features :

• Atmega328p- controller
• Standard I/O interface for UNO shield.
• Xbee foot print for RF/WiFi communication.
• Inbuilt Micro SD memory card slot for Data logging application.
• Programmable with Arduino open source.

For More details Please CLICK HERE
